Series Pass Sluice

No items found.
No items found.
Series Pass Sluice

10% OFF this product

In all orders placed before 1st of January

Pass through foot wear Sanatisation with hand sanatisation as option
  • Hot Water Connection
  • 1/2"
  • Material
  • Stainless Steel
Enquire Now

Note:

Technical Specs

Model 552201

  • Total Length
  • 1900mm
  • Sole Washing Length
  • 600mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Disinfection
  • Weight
  • 225 kg

Model 552202

  • Total Length
  • 2200mm
  • Sole Washing Length
  • 900mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Disinfection
  • Weight
  • 223 kg

Model 552203

  • Total Length
  • 2500mm
  • Sole Washing Length
  • 900mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Disinfection
  • Weight
  • 223 kg

Model 552204

  • Total Length
  • 1900mm
  • Sole Washing Length
  • 600mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Disinfection
  • Weight
  • 227 kg

Model 552205

  • Total Length
  • 2200mm
  • Sole Washing Length
  • 600mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Washing And Disinfection
  • Weight
  • 231 kg

Model 552206

  • Total Length
  • 2500mm
  • Sole Washing Length
  • 900mm
  • Footbath Washing Length
  • 900mm
  • Additional Equipment
  • With Hand Washing And Disinfection
  • Weight
  • 245 kg

Model 552201

  • Total Length
  • 1900mm
  • Sole Washing Length
  • 600mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Disinfection
  • Weight
  • 225 kg

Model 552202

  • Total Length
  • 2200mm
  • Sole Washing Length
  • 900mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Disinfection
  • Weight
  • 223 kg

Model 552203

  • Total Length
  • 2500mm
  • Sole Washing Length
  • 900mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Disinfection
  • Weight
  • 223 kg

Model 552204

  • Total Length
  • 1900mm
  • Sole Washing Length
  • 600mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Disinfection
  • Weight
  • 227 kg

Model 552205

  • Total Length
  • 2200mm
  • Sole Washing Length
  • 600mm
  • Footbath Washing Length
  • 600mm
  • Additional Equipment
  • With Hand Washing And Disinfection
  • Weight
  • 231 kg

Model 552206

  • Total Length
  • 2500mm
  • Sole Washing Length
  • 900mm
  • Footbath Washing Length
  • 900mm
  • Additional Equipment
  • With Hand Washing And Disinfection
  • Weight
  • 245 kg

Service & Spare Parts Packages

We believe in long-term durability and reliability for all your equipment purchased here at IWM. We have carefully crafted a product Care Plan that includes essential items like spare parts and scheduled maintenance and checks for all your IWM Equipment.

Simply Tick the Box in the Enquiry Form to Learn more

From £600
I am interested

Standard Features

Manufactured in stainless steel.

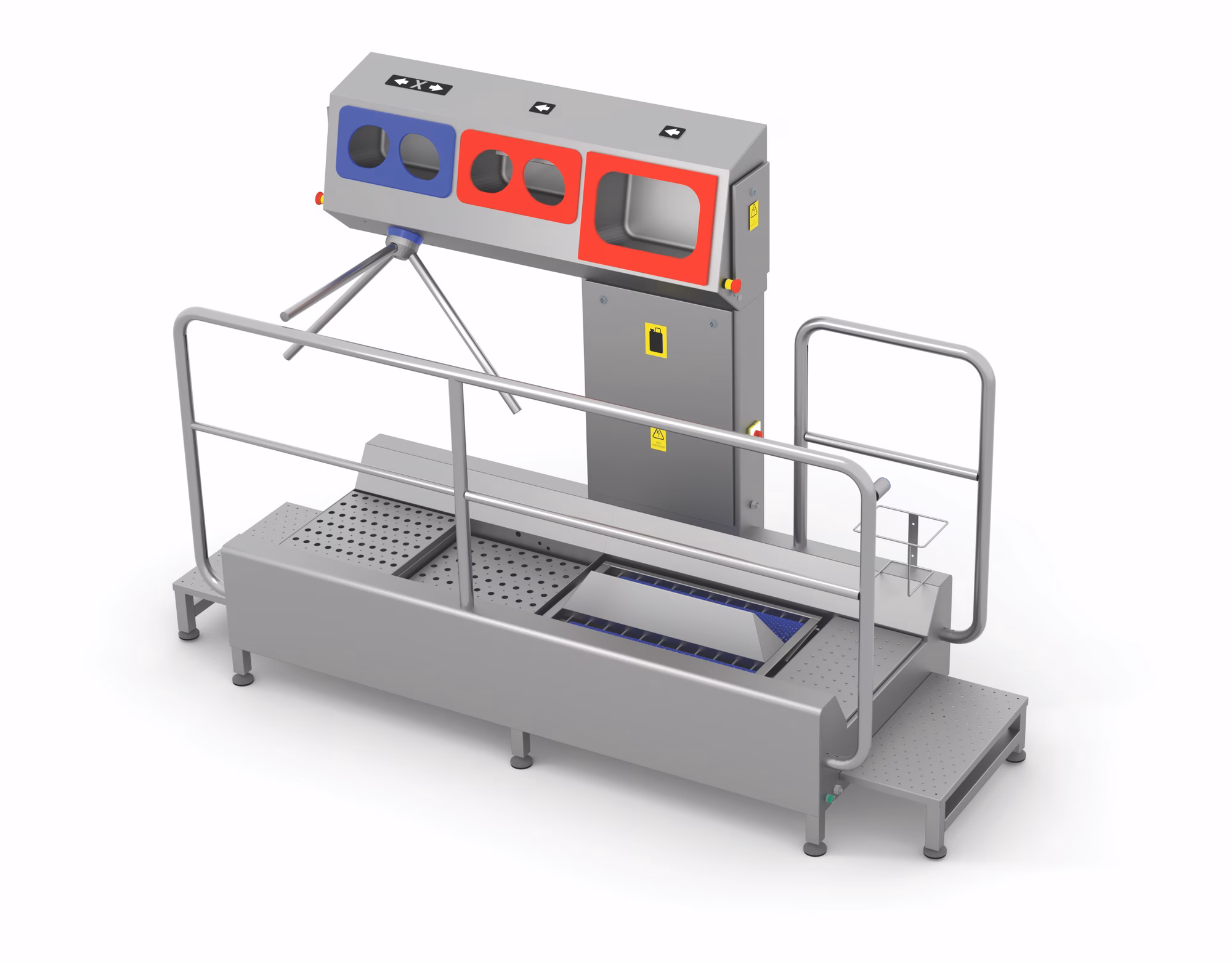

Specially designed for narrow areas where a mounted double-acting sluice is ideal. This compact washer includes sole washing, sole and leg disinfection to the height of 3cm. Washing and disinfection part length can be 600 or 900 mm depending on quantity of passing workers. Additional equipment can be mounted on the washer:

  • Access stand for hand disinfection (cat. no 551403)
  • Access stand for hand washing and disinfection (cat. no 551404)
  • Hand dryer (cat. no 552701)
  • Sensor cell handbasin (cat. no 531000B)

The photocell control system enable operation in both directions.

Sluice width: 950 mm
